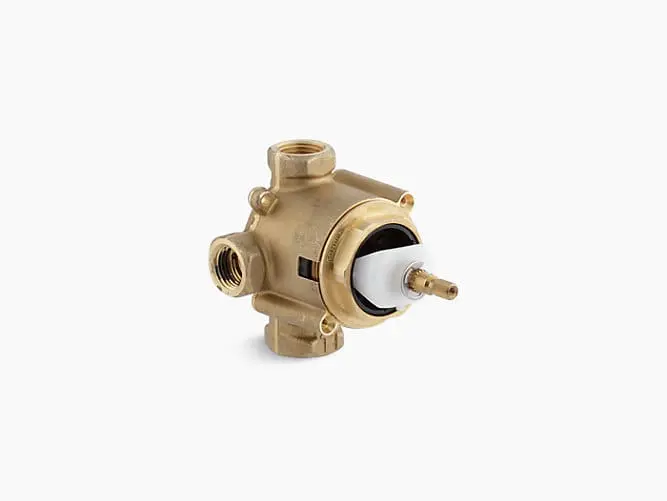

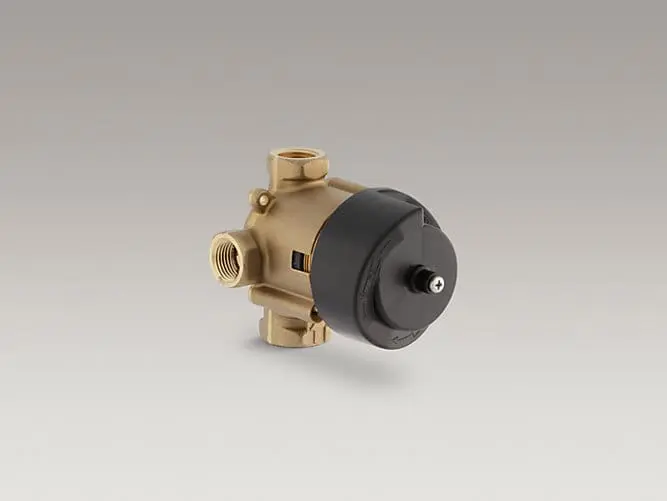

KOHLER 728-K-NA 3/4″ MASTERSHOWER 2 OR 3 WAY TRANSFER VALVE

SKU: 239578 Categories: , , , , , , Tags: , ,

Description

  • FEATURES
  • Transfers water flow to up to three separate components/outlets.
  • Components/outlets can be operated individually or in any combination of two components at the same time.
  • Supplied as a three-way transfer valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation).
  • Single handle operation.
  • Using 1 outlet: 18 gpm flow rate at 45 psi; using 2 outlets: 20.8 gpm at 45 psi.
  • One 3/4″ female NPT inlet connection.
  • Three 1/2″ female NPT outlet connections.
  • Requires additional valve/s to control On/Off operation and temperature (sold separately).
  • Requires transfer/diverter valve trim (sold separately).
  • Material
  • Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.

KOHLER |

file pdf iconSPEC SHEET
