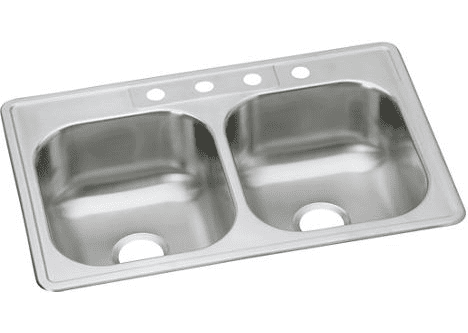

DAYTON DSE23322-4 EQUAL DOUBLE BOWL DROP IN STAINLESS

Description

  • DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
  • DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
  • 20-GAUGE STAINLESS STEEL: Commercial grade 20-gauge thickness and 300 Series stainless steel for everyday use.
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink.
  • MADE IN THE USA: This Elkay product is proudly made in the USA.
  • DRAIN OPENING: Sink drain opening measures 3-1/2″.

PRODUCT SPECIFICATIONS

INSTALLATION TYPE Drop-in
MATERIAL Stainless Steel
FINISH Elite Satin
GAUGE 20 Gauge
SOUND DEADENING Bottom only pads
NUMBER OF BOWLS 2
MINIMUM CABINET SIZE 36″
SINK DIMENSIONS L: 33″
W: 22″
D: 8-1/16″
BOWL 1 DIMENSIONS L: 14″
W: 15-3/4″
H: 7-7/8″
BOWL 2 DIMENSIONS L: 14″
W: 15-3/4″
H: 7-7/8″
FAUCET HOLES 4
DRAIN SIZE 3-1/2″
SHIPPING DIMENSIONS L: 25″
W: 9-1/8″
H: 35″
PRODUCT COMPLIANCE
  • ASME A112.19.3/CSA B45.4
  • BUY AMERICAN ACT

file pdf iconSPEC SHEET
